Festo
8089048

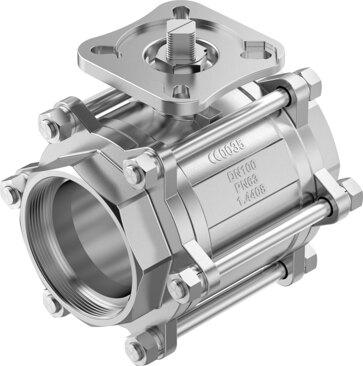

Ball valve VZBE-4-WA-63-T-2-F1012-V15V15
This Festo 8089048 mechanical 2-way ball valve features a soft sealing principle, a nominal width DN of 100, and an inside diameter of 96 mm with a nominal pressure PN of 63. Designed for in-line installation with weld-on ends according to ASME B16.11 and an ISO 5211 F10/F12 flange hole pattern, it accommodates a reversible flow direction for vapor, compressed air, inert gas, water, and neutral liquids across a medium temperature range of -20 °C to 200 °C. The component delivers a Kv flow rate of 1637 m³/h and a breakaway torque of 138 Nm at nominal differential pressure, incorporating RoHS-compliant materials with VDMA24364 Zone III LABS conformity and a slot-direction flow indicator. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8089048
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8089048.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ASME B16.11
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F10 | F12
- Inside diameter
- 96 mm
- Nominal width DN
- 100
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 138 Nm
- Based on norm
- ASME B16.11 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 1637 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8089048. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
