Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

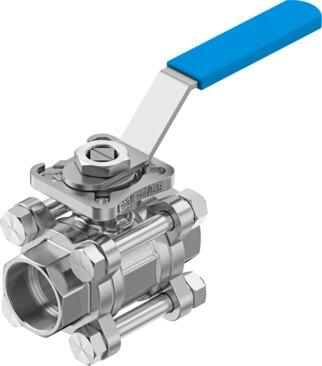

Reference imageConfirm configuration by manufacturer part number.
Festo
8089058
Ball valve VZBE-3/4-WA-63-T-2-F0304-M-V15V15
The Festo 8089058 is a mechanical 2-way ball valve featuring a soft sealing principle, a manual hand lever, and an inside diameter of 20 mm with a nominal width DN of 20. Designed for in-line installation in any mounting position based on ASME B16.11 and ISO 5211 norms, this component includes weld-on ends according to ASME B16.11, an F03 and F04 flange hole pattern, and a nominal pressure PN of 63. It operates with a reversible flow direction, a flow rate Kv of 59 cubic meters per hour, a breakaway torque of 9 Nm at nominal differential pressure, and handles a medium temperature range from -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8089058
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8089058.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve with hand lever
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ASME B16.11
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03 | F04
- Inside diameter
- 20 mm
- Nominal width DN
- 20
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 9 Nm
- Based on norm
- ASME B16.11 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 59 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8089058. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
