Festo
8089064

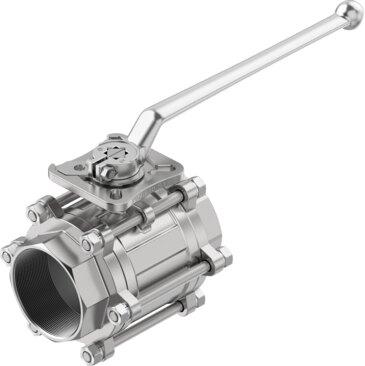

Ball valve VZBE-3-WA-63-T-2-F0710-M-V15V15
The Festo 8089064 is a mechanical 2-way ball valve with a hand lever, featuring a soft sealing principle and a nominal width DN of 80 with an inside diameter of 76 mm. Designed for in-line installation in any mounting position with weld-on ends according to ASME B16.11, this 2/2 valve handles a nominal pressure of 63 PN and a flow rate Kv of 995 m³/h across a medium temperature range of -20 °C to 200 °C. It accommodates vapor, compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids with reversible flow direction, featuring an F07 and F10 flange hole pattern based on ISO 5211 norms and a breakaway torque of 103 Nm at nominal pressure. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8089064
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8089064.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve with hand lever
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ASME B16.11
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F07 | F10
- Inside diameter
- 76 mm
- Nominal width DN
- 80
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 103 Nm
- Based on norm
- ASME B16.11 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 995 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
