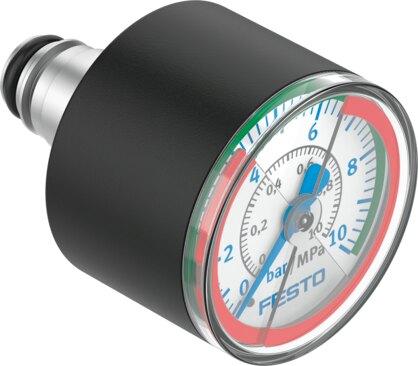

Reference imageConfirm configuration by manufacturer part number.
Festo
8090378
Pressure gauge PAGN-26-10-P10-RG
The Festo 8090378 is a Bourdon tube pressure gauge featuring a nominal size of 26 and a centered rear-side cartridge 10 mm pneumatic connection for in-line installation. It provides a display and operating pressure range of 0 bar to 10 bar, 0 MPa to 1 MPa, or 0 psi to 145 psi, with an intermittent load factor of 0.66, measurement accuracy class 4, and IP43 degree of protection. Constructed with a PA housing, brass screwed plug, and brass media-contacting components, this unit operates with neutral liquids and inert gases excluding oxygen and acetylene within a medium and ambient temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8090378
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8090378.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...10 bar | 0 MPa...1 MPa
- Pressure gauge nominal size
- 26
- Structural design
- Bourdon tube pressure gauge without measuring mechanism
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 4
- Degree of protection
- IP43
- Storage temperature
- -5 °C...50 °C
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- Cartridge 10 mm
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- PA
- Inspection window material
- PS
- Housing colour
- Black
- Product weight
- 15 g
- Scale
- Double scale | MPa (inner scale)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8090378. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
