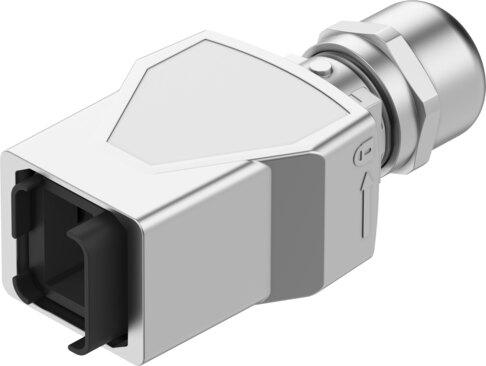

Reference imageConfirm configuration by manufacturer part number.
Festo
8090740
Dummy plug NEAC-M-S-BD-R3SCPP
The Festo 8090740 is a silver industrial component measuring 34 mm in width, 22.4 mm in height, and 69.2 mm in length with a product weight of 79.6 g. Featuring a nickel-plated die-cast zinc housing with NBR seals, it provides IP65 and IP67 protection ratings in the mounted state and operates within an ambient and storage temperature range of -40 °C to 70 °C. This RoHS-compliant unit includes a push-pull mounting type for RJ45 and SC-RJ electrical connections, exhibits VDMA24364-A1-L LABS conformity, and is fire tested to UL94 V-0 with a corrosion resistance class of CRC 1. Submit the exact part number, quantity, and application requirements to request a formal quote for a pack size of 1.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8090740
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8090740.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 34 mm
- Height
- 22.4 mm
- Length
- 69.2 mm
- Product weight
- 79.6 g
- Pack size
- 1
- Electrical connection 1, connection technology
- For RJ45 and SC-RJ
- Electrical connection 1, type of mounting
- Push-pull
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- In mounted state
- Ambient temperature
- -40 °C...70 °C
- Storage temperature
- -40 °C...70 °C
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing colour
- Silver
- Housing material
- Die-cast zinc, nickel-plated
- Seals material
- NBR
- Fire tested
- UL94 V-0
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8090740. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
