Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

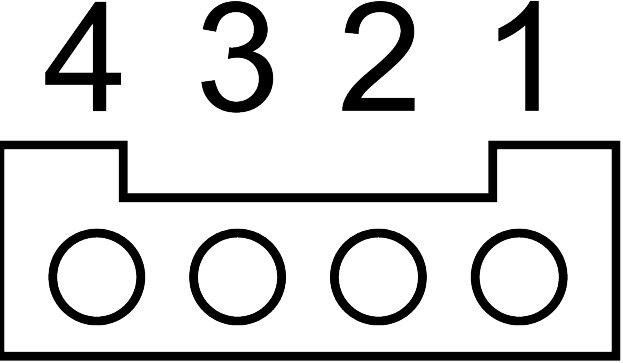

Reference imageConfirm configuration by manufacturer part number.
Festo
8091514
Connecting cable NEBS-L1G4-K-1-N-M12G4
This Festo industrial component, part number 8091514, weighs 40 g and operates within a DC operating voltage range of 0 V to 30 V with a contact durability of 100. The field device side features a straight square socket with connection technology pattern L1J, 4 pins, snap-locking mounting, and no label holder on the cable designation. The control side utilizes a straight round M12x1 A-coded plug as per EN 61076-2-101 with 4 pins and a screw-type lock featuring a hexagon AF 13 and longitudinal knurl. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8091514
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8091514.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 40 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern L1J
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon AF 13 and longitudinal knurl
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 0.8 kV
- Cable length
- 1 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 14 mm
- Bending radius, exible cable installation
- 46 mm
- Cable diameter
- 4.5 mm
- Cable diameter tolerance
- ± 0.1 mm
- Cable design
- 4 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8091514. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
