Festo
8091515
Connecting cable NEBU-LE3-K-1-N-M12G3
The Festo part number 8091515 is an industrial component weighing 35 g with a 3-pin open-end cable on the field device end and a straight, 3-pin M12x1 A-coded round plug with a screw-type lock on the control side. It operates across a DC and AC operating voltage range of 0 V to 250 V, carries a current rating of 4 A at 40° C, and features wire colors and connection numbers conforming to EN 60947-5-2 and EN 61076-2-101. This unit is rated for ATEX Zone 2 and Zone 22 hazardous locations in accordance with the provided certificate information. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8091515
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8091515.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-101
- Explosion prevention and protection
- Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
- Cable designation
- Without label holder
- Product weight
- 35 g
- Electrical connection 1, function
- Field device end
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight

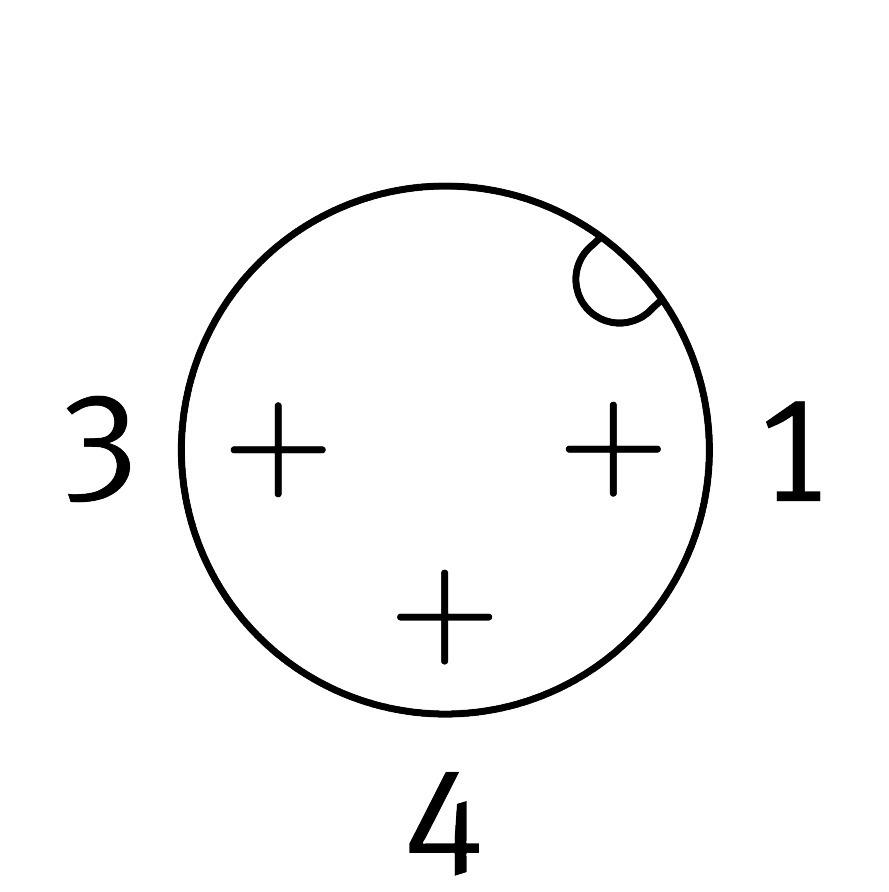

- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 3
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...250 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Cable length
- 1 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 75 mm
- Bending radius, xed cable installation
- 12 mm
- Bending radius, exible cable installation
- 39 mm
