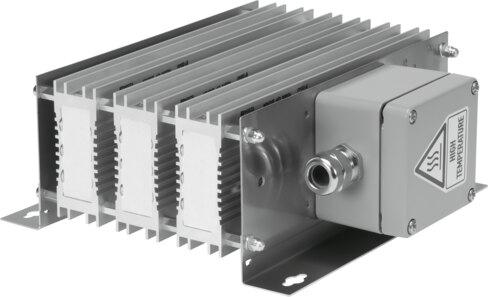

Reference imageConfirm configuration by manufacturer part number.
Festo
8091544
Braking resistor CACR-KL2-240-W1800
The Festo industrial component, part number 8091544, is a size 600 braking resistor with a resistance value of 240 Ohm and a product weight of 3400 g. It features a braking resistor nominal power of 720 W across 380 V and 780 V, an output of 1800 W at a 35% duty cycle and 20 °C, and a pulse energy braking resistor rating of 10800 Ws at both 380 V and 780 V. Built with IP65 protection and RoHS-compliant materials, the unit conforms to VDMA24364 Zone III LABS (PWIS) and carries c CSA us (OL) and c UL us - recognized (OL) certifications for operation within an ambient temperature range of 0 °C to 50 °C. It supports vertical or open convection mounting positions utilizing through-holes or accessories. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8091544
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8091544.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 600
- Mounting position
- Open convection | Vertical
- Pulse energy braking resistor at 380 V
- 10800 Ws
- Pulse energy braking resistor at 780 V
- 10800 Ws
- Output at 35% duty cycle and 20°C
- 1800 W
- Braking resistor nominal power
- 720 W
- Braking resistor nominal power at 380 V
- 720 W
- Braking resistor nominal power at 780 V
- 720 W
- Resistance value
- 240 Ohm
- Certication
- c CSA us (OL) | c UL us - recognized (OL)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 3400 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8091544. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
