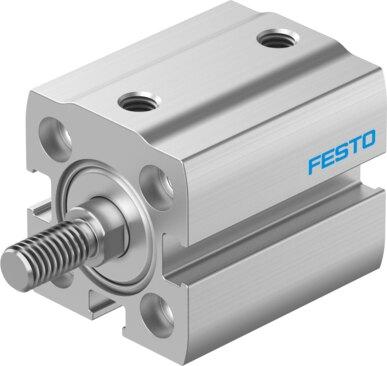

Name: Festo 8091672 Compact cylinder ADN-S-16-30-A-P
Brand: Festo

Compact cylinder ADN-S-16-30-A-P

This Festo industrial component, part number 8091672, is a double-acting piston and piston rod assembly featuring a 16 mm piston diameter, a 30 mm stroke, and a piston rod at one end with an external thread. It operates within a pressure range of 1 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and subsequently required for continued operation across an ambient temperature range of 0 °C to 80 °C. The unit incorporates elastic cushioning rings at both ends, yielding a moving mass of 6 g at 0 mm stroke with an additional 4 g per 10 mm stroke, a 0.1 J end-position impact energy, and theoretical forces of 90 N retracting and 121 N advancing at 6 bar. Constructed with a low corrosion stress rating (CRC 1), VDMA24364-B2-L LABS conformity, and ISO 14644-1 Class 5 cleanroom suitability in any mounting position, this part meets specific operational parameters. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8091672
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8091672.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 30 mm
Piston diameter: 16 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: External thread
Structural design: Piston | Piston rod
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: 0 °C...80 °C
Impact energy in the end positions: 0.1 J
Theoretical force at 6 bar, retracting: 90 N
Theoretical force at 6 bar, advancing: 121 N
Moving mass at 0 mm stroke: 6 g
Additional moving mass per 10 mm stroke: 4 g
Basic weight with 0 mm stroke: 32.5 g
Additional weight per 10 mm stroke: 18 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: M5
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy, anodized
Material of dynamic seals: NBR
Housing material: Wrought aluminum alloy, anodized
