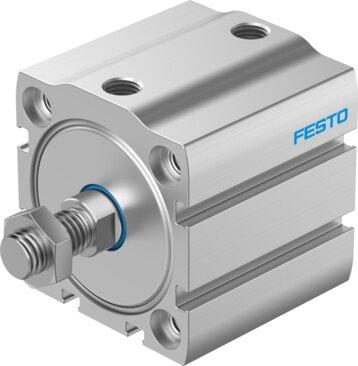

Reference imageConfirm configuration by manufacturer part number.
Festo
8092081
Compact cylinder ADN-S-50-5-A-P-A
The Festo 8092081 is a double-acting industrial component featuring a 50 mm piston diameter, a 5 mm stroke, and a piston rod at one end with an external thread. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.4 bar to 10 bar pressure range, this unit delivers theoretical forces of 1178 N advancing and 1057 N retracting at 6 bar. It incorporates elastic cushioning rings at both ends, accommodates position sensing via proximity switch, and functions in any mounting position across an ambient temperature range of 0 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8092081
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8092081.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 50 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 MPa...1 MPa | 0.4 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...80 °C
- Impact energy in the end positions
- 1 J
- Theoretical force at 6 bar, retracting
- 1057 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Moving mass at 0 mm stroke
- 104 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 324 g
- Additional weight per 10 mm stroke
- 63 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy, anodized
- Material of dynamic seals
- TPE-U(PU)
- Housing material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8092081. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
