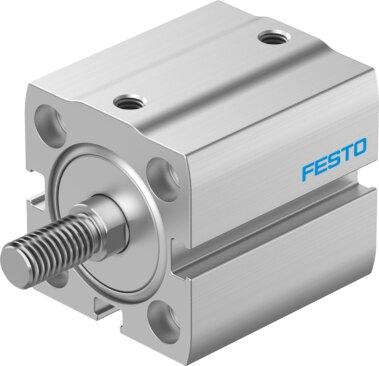

Reference imageConfirm configuration by manufacturer part number.
Festo
8092108
Compact cylinder ADN-S-25-35-A-P-A
Engineered by Festo with a 25 mm piston diameter and a 35 mm stroke, this double-acting industrial component features a piston rod at one end with an external thread and elastic cushioning rings at both ends. It operates on compressed air within a pressure range of 0.6 bar to 10 bar across an ambient temperature span of 0 °C to 80 °C, supporting position sensing via a proximity switch and functioning in any mounting position. The unit delivers a theoretical advancing force of 295 N and a retracting force of 247 N at 6 bar, meeting ISO 14644-1 Class 5 cleanroom suitability and VDMA24364-B2-L LABS conformity with a CRC rating of 1. Submit the exact part number 8092108, quantity, and application requirements for a formal price and lead time quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8092108
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8092108.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 35 mm
- Piston diameter
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- 0 °C...80 °C
- Impact energy in the end positions
- 0.3 J
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass at 0 mm stroke
- 25 g
- Additional moving mass per 10 mm stroke
- 6 g
- Basic weight with 0 mm stroke
- 88 g
- Additional weight per 10 mm stroke
- 30 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy, anodized
- Material of dynamic seals
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8092108. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
