Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

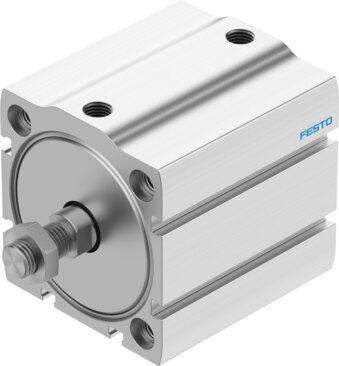

Reference imageConfirm configuration by manufacturer part number.
Festo
8092127
Compact cylinder ADN-S-63-50-A-P
The Festo 8092127 is a double-acting industrial component featuring a 63 mm piston diameter and a 50 mm stroke, operating via compressed air as per ISO 8573-1:2010 [7:4:4] across a pressure range of 0.4 bar to 10 bar. Designed with elastic cushioning rings at both ends, a piston rod end with an external thread, and an additional PTFE piston guide, this part delivers a theoretical advancing force of 1870 N and a retracting force of 1750 N at 6 bar. It accommodates any mounting position within an ambient temperature range of 0 °C to 80 °C while maintaining ISO 14644-1 Class 5 cleanroom suitability and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8092127
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8092127.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Piston diameter
- 63 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Variants
- Additional PTFE piston guide
- Operating pressure
- 0.04 MPa...1 MPa | 0.4 bar...10 bar | 5.8 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- 0 °C...80 °C
- Impact energy in the end positions
- 0.64 J
- Theoretical force at 6 bar, retracting
- 1750 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass at 0 mm stroke
- 175 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 505 g
- Additional weight per 10 mm stroke
- 76 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy, anodized
- Material of dynamic seals
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8092127. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
