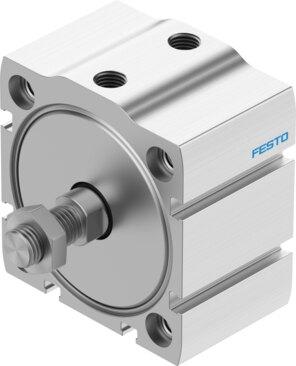

Name: Festo 8092131 Compact cylinder ADN-S-63-15-A-P
Brand: Festo

Compact cylinder ADN-S-63-15-A-P

This double-acting industrial component from Festo features a 63 mm piston diameter and a 15 mm stroke with a piston and piston rod structural design, external thread piston rod end, and an additional PTFE piston guide. It operates on compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of 0.04 MPa to 1 MPa (0.4 bar to 10 bar / 5.8 psi to 145 psi) and an ambient temperature range of 0 °C to 80 °C, utilizing elastic cushioning rings or pads at both ends with an impact energy of 0.64 J in the end positions. The unit delivers a theoretical force of 1870 N advancing and 1750 N retracting at 6 bar, with a moving mass of 175 g at 0 mm stroke and an additional moving mass of 16 g per 10 mm stroke, rated for any mounting position, CRC 1 low corrosion stress, VDMA24364-B2-L LABS conformity, and ISO 14644-1 Class 5 cleanroom suitability. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8092131
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8092131.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 15 mm
Piston diameter: 63 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: External thread
Structural design: Piston | Piston rod
Variants: Additional PTFE piston guide
Operating pressure: 0.04 MPa...1 MPa | 0.4 bar...10 bar | 5.8 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: 0 °C...80 °C
Impact energy in the end positions: 0.64 J
Theoretical force at 6 bar, retracting: 1750 N
Theoretical force at 6 bar, advancing: 1870 N
Moving mass at 0 mm stroke: 175 g
Additional moving mass per 10 mm stroke: 16 g
Basic weight with 0 mm stroke: 505 g
Additional weight per 10 mm stroke: 76 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy, anodized
Material of dynamic seals: NBR
