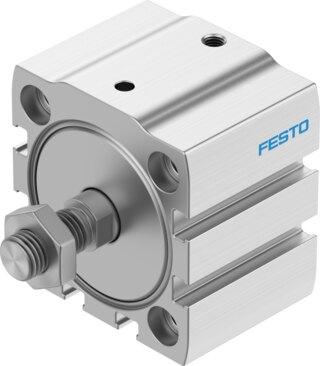

Name: Festo 8092162 Compact cylinder AEN-S-40-5-A-P-A
Brand: Festo

Compact cylinder AEN-S-40-5-A-P-A

The Festo part number 8092162 is an industrial component featuring a 40 mm piston diameter, a 5 mm stroke, and elastic cushioning rings or pads at both ends. Operating within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar / 14.5 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4], this model delivers a theoretical advancing force of 700 N and a retracting force of 38 N at 6 bar. Position sensing is achieved via a proximity switch, and the structural design incorporates a piston rod at one end with an external thread for any mounting position. Please submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8092162
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8092162.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 5 mm
Piston diameter: 40 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Pushing
Piston rod end: External thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: 0 °C...80 °C
Impact energy in the end positions: 0.7 J
Theoretical force at 6 bar, retracting: 38 N
Theoretical force at 6 bar, advancing: 700 N
Moving mass at 0 mm stroke: 62 g
Additional moving mass per 10 mm stroke: 9 g
Basic weight with 0 mm stroke: 304 g
Additional weight per 10 mm stroke: 45 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: M5
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy, anodized
Material of dynamic seals: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8092162. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
