Name: Festo 8093824 Air gap sensor SOPA-CM4H-R1-HQ6-PNLK-VB-M12
Brand: Festo

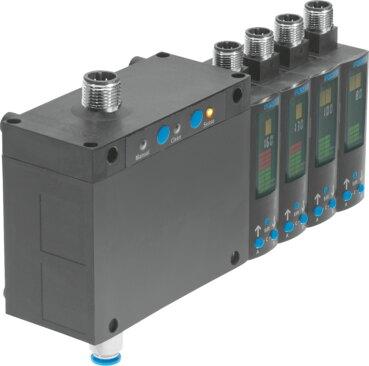

Air gap sensor SOPA-CM4H-R1-HQ6-PNLK-VB-M12

The Festo part number 8093824 is a pneumatic industrial component utilizing a pneumatic measuring principle with a sensing range of 20 µm to 200 µm and a repetition accuracy of ±2.5 µm. Operating at a pressure of 4 bar to 8 bar with a supply pressure of 0.8 bar to 1.6 bar, it processes compressed air in accordance with ISO 8573-1:2010 [7:4:4] and supports oil lubrication. The device features a switchable PNP/NPN switching output, window comparator and threshold value switching functions, N/C or N/O switchable elements with a 100 mA max output current, and a 0 - 10 V analog output starting at 0 µm. Certified with RCM, c UL us, CE, UKCA, and KC-EMV marks while remaining RoHS compliant, this component functions within an ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8093824
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8093824.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Note on materials: RoHS compliant
Detected variable: Distance
Measuring principle: Pneumatic
Sensing range: 20 µm...200 µm
Operating pressure: 4 bar...7 bar
Supply pressure: 0.8 bar...1.6 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Ambient temperature: 0 °C...50 °C
Repetition accuracy in ± µm: 2.5 µm
Switching output: PNP/NPN switchable
Switching function: Window comparator | Threshold value with variable hysteresis
Switching element function: N/C contact/N/O contact, switchable
Max. output current: 100 mA
Analog output: 0 - 10 V
Distance characteristic curve start value: 0 µm
Distance characteristic curve end value: 300 µm
Rise time: 22 ms
Min. load resistance of voltage output: 20 kOhm
Short-circuit protection: Yes
Protocol: IO-Link®
IO-Link®, protocol version: Device V 1.1
IO-Link®, prole: Smart sensor prole
IO-Link®, function classes: Process data variable (PDV) | Identication

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8093824. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
