Festo
8094100

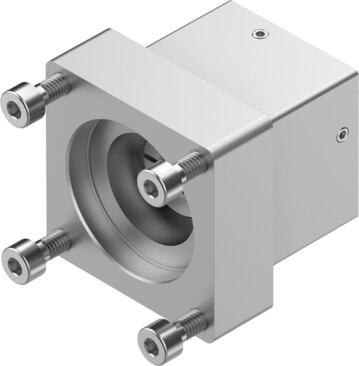

Axial kit EAMM-A-V25-40RA
The Festo part number 8094100 is an industrial component featuring a nominal length of 39 mm, a mass moment of inertia of 0.19 kgmm², and a product weight of 94 g. Designed with an actuator interface code V25 and a motor input interface code 40RA, this unit achieves a transferable torque of 0.5 Nm at a maximum rotational speed of 10000 rpm in any mounting position. It operates within an ambient temperature range of -10 °C to 60 °C, supports storage temperatures from -25 °C to 60 °C and relative air humidity up to 95%, meets VDMA24364-B2-L LABS conformity, and provides IP40 degree of protection with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8094100
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8094100.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 39 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.19 kgmm²
- Transferable torque
- 0.5 Nm
- Product weight
- 94 g
- Interface code, actuator
- V25
- Interface code, motor in
- 40RA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8094100. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
