8095436

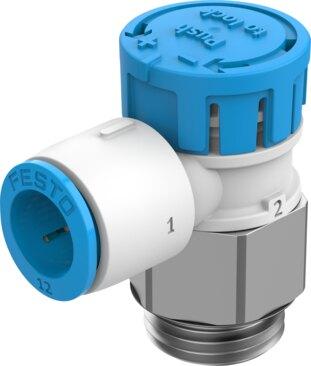

Name: Festo 8095436 One-way flow control valve VFOE-LE-T-G12-Q12-P20
Brand: Festo

One-way flow control valve VFOE-LE-T-G12-Q12-P20

The Festo part number 8095436 is an industrial component featuring an exhaust air flow control non-return function with a QS-12 pneumatic connection 1 and a G1/2 pneumatic connection 2. It utilizes a manual actuation type with a rotary knob with latch adjusting element, supports screw-in mounting in any mounting position, and is housed in PBT with a 24 mm width across flats. This component operates within a temperature range of -10 °C to 60 °C and an operating pressure of 0.02 MPa to 1 MPa (0.2 bar to 10 bar or 2.9 psi to 145 psi), utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with oil lubrication operation possible. It provides a standard nominal flow rate of 1200 l/min in the flow control direction and 600 l/min to 1200 l/min in the non-return direction, while offering ATEX explosion prevention and protection compliance for Zones 1, 2, 21, and 22 along with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8095436
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8095436.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Pneumatic connection 1: QS-12
Pneumatic connection 2: G1/2
Actuation type: Manual
Adjusting element: Rotary knob with latch
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 1200 l/min
Standard nominal ow rate in non-return direction: 600 l/min...1200 l/min
Ambient temperature: -10 °C...60 °C
Housing material: PBT
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Width across ats: 24 mm
Rotatability: 360 deg/continuous swiveling not permissible
Operating pressure for entire temperature range: 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
Standard ow rate in ow control direction 6 -> 0 bar: 1900 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 1400 l/min...2000 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C...60 °C

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8095436. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
