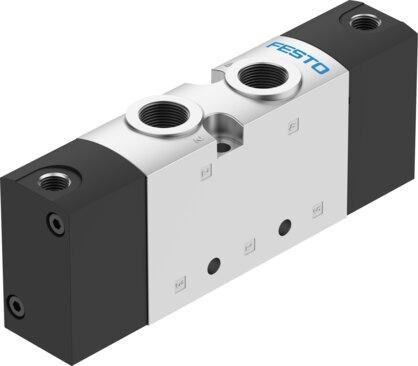

Reference imageConfirm configuration by manufacturer part number.
Festo
8096577
Pneumatic valve VUWS-LT30-B52-G38
The Festo 8096577 is a direct-controlled 5/2-way bistable pneumatic valve featuring a 31 mm valve size, an 8.7 mm nominal width, and a plate seat structural design with soft sealing. This component delivers a normal nominal flow rate of 1800 l/min through G3/8 working ports, operating within a pressure and pilot pressure range of 0.15 MPa to 1 MPa with an adjustable exhaust air function and a 13 ms changeover time. Certified as c UL us recognized, it supports any mounting position and utilizes internal pilot air supply with a non-reversible flow direction and negative overlap lap. Submit the exact part number, quantity, and application requirements to receive a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096577
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096577.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Pneumatic
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1800 l/min
- Pneumatic working port
- G3/8
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Structural design
- Plate seat
- Certication
- c UL us - recognized (OL)
- Nominal width
- 8.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.15 MPa...1 MPa
- Pilot pressure
- 1.5 bar...10 bar
- Changeover time
- 13 ms
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8096577. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
