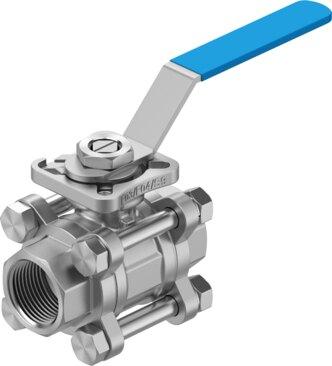

Reference imageConfirm configuration by manufacturer part number.
Festo
8096666
Ball valve VZBE-3/4-T-63-T-2-F0304-M-V15V15
The Festo 8096666 is a 2-way mechanical soft-sealed ball valve featuring a 3/4 NPT fitting connection, a nominal width DN of 20, and an inside diameter of 20 mm for in-line installation in any mounting position. Built on ASME B1.20.1 and ISO 5211 norms with an F0304 flange hole pattern, this 2/2 valve handles vapor, compressed air, inert gas, water, and neutral liquids at a medium temperature range of -20 °C to 200 °C and a nominal pressure PN of 63. It delivers a flow rate Kv of 15.6 m³/h, a reversible flow direction, and a breakaway torque of 9 Nm at nominal differential pressure, with a slot direction indicator matching the flow and RoHS-compliant, VDMA24364 Zone III conforming materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096666
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096666.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 3/4 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0304
- Inside diameter
- 20 mm
- Nominal width DN
- 20
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 9 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 15.6 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
