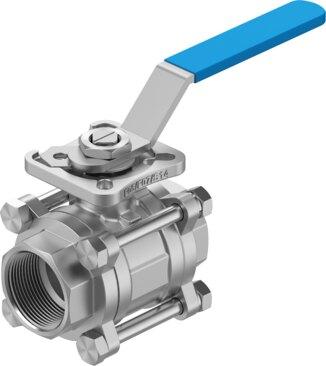

Reference imageConfirm configuration by manufacturer part number.
Festo
8096669
Ball valve VZBE-11/2-T-63-T-2-F0507-M-V15V15
Engineered by Festo, part number 8096669 is a mechanical 2-way ball valve featuring a 2/2 valve function, a nominal width DN of 40, and an inside diameter of 38 mm with 1 1/2 NPT fitting connections based on ASME B1.20.1 and ISO 5211 norms. This soft-sealed component accommodates reversible flow for vapor, compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids across a medium temperature range of -20 °C to 200 °C, achieving a flow rate Kv of 61.6 m³/h at a nominal pressure PN of 63. Designed with an F0507 flange hole pattern and a breakaway torque of 25 Nm at nominal differential pressure, the valve supports any mounting position via in-line installation, utilizes slot direction for switching position indication, and complies with RoHS and VDMA24364 Zone III LABS standards. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096669
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096669.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1 1/2 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0507
- Inside diameter
- 38 mm
- Nominal width DN
- 40
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 25 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 61.6 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8096669. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
