Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

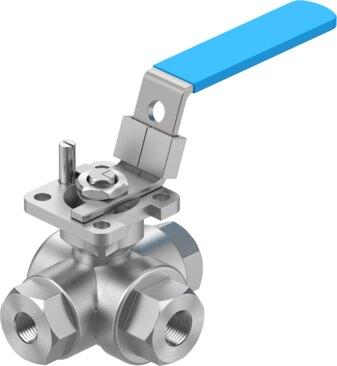

Reference imageConfirm configuration by manufacturer part number.
Festo
8096943
Ball valve VZBE-1/4-T-63-F-3L-F04-M-V15V15
The Festo 8096943 is a mechanical 3-way ball valve featuring an L bore, a 3/2 valve function, and an 11 mm inside diameter with a nominal width DN of 8. Built for in-line installation in any mounting position, this component utilizes a soft sealing principle, features a 1/4 NPT fitting connection, and accommodates a medium temperature range of -20 °C to 200 °C with a nominal pressure PN of 63. It operates on vapor, compressed air, inert gas, water, and neutral liquids, exhibiting a flow rate Kv of 1.2 m³/h and a breakaway torque of 9.6 Nm at nominal differential pressure based on ASME B1.20.1 and ISO 5211 norms. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096943
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096943.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | L bore
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1/4 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F04
- Inside diameter
- 11 mm
- Nominal width DN
- 8
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 9.6 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv type L
- 1.2 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8096943. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
