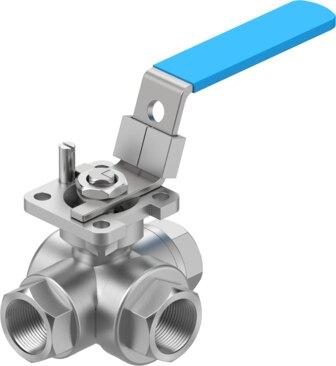

Reference imageConfirm configuration by manufacturer part number.
Festo
8096945
Ball valve VZBE-1/2-T-63-F-3L-F04-M-V15V15
The Festo 8096945 is a 3-way mechanical ball valve featuring an L bore, a 3/2 valve function, and an inside diameter of 12.7 mm with a nominal width DN of 15. Built with soft sealing and a nominal pressure PN of 63, this in-line mounted component accommodates a medium temperature range of -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids. It operates with a reversible flow direction, a flow rate Kv type L of 2.5 m³/h, and a breakaway torque of 9.6 Nm at nominal differential pressure based on ASME B1.20.1 and ISO 5211 norms. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this RoHS-compliant component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096945
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096945.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | L bore
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1/2 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F04
- Inside diameter
- 12.7 mm
- Nominal width DN
- 15
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 9.6 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv type L
- 2.5 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
