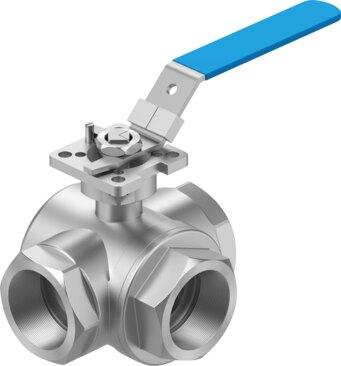

Reference imageConfirm configuration by manufacturer part number.
Festo
8096950
Ball valve VZBE-2-T-63-F-3L-F0507-M-V15V15
The Festo 8096950 is a mechanical 3-way ball valve featuring an L bore, a soft sealing principle, and a 3/2 valve function with a nominal width DN of 50 and an inside diameter of 38.1 mm. Built for in-line installation in any mounting position, this component accommodates a nominal pressure PN of 63, a breakaway torque of 85 Nm at nominal differential pressure, and a flow rate Kv type L of 20.7 m³/h for media including compressed air, inert gas, vapor, water, and neutral liquids operating within a temperature range of -20 °C to 200 °C. Conforming to ASME B1.20.1, ISO 5211, and VDMA24364 Zone III standards with RoHS compliance, it features a 2 NPT fitting connection, an F0507 flange hole pattern, and a switching position indication where the slot direction corresponds to the flow direction. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096950
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096950.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | L bore
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 2 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0507
- Inside diameter
- 38.1 mm
- Nominal width DN
- 50
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 85 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv type L
- 20.7 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
