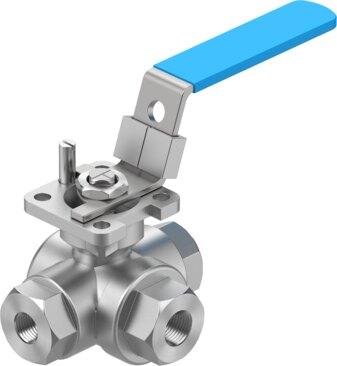

Reference imageConfirm configuration by manufacturer part number.
Festo
8096951
Ball valve VZBE-1/4-T-63-F-3T-F04-M-V15V15
The Festo part number 8096951 is an industrial component featuring a 3-way ball valve design with a T hole, a 3/2 valve function, and an inside diameter of 11 mm. Based on ASME B1.20.1 and ISO 5211 norms, this mechanically actuated valve includes 1/4 NPT fitting connections, a nominal width DN of 8, a PN 63 nominal pressure, and a soft sealing principle supporting reversible flow for compressed air, vapor, inert gas, water, and neutral liquids across a medium temperature range of -20 °C to 200 °C. The unit accommodates an F04 flange hole pattern, allows in-line installation in any mounting position, indicates switching position via slot direction aligned with flow direction, and requires a 9.6 Nm breakaway torque at nominal pressure. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096951
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096951.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | T hole
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1/4 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F04
- Inside diameter
- 11 mm
- Nominal width DN
- 8
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 9.6 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv type T corner
- 1.4 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8096951. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
