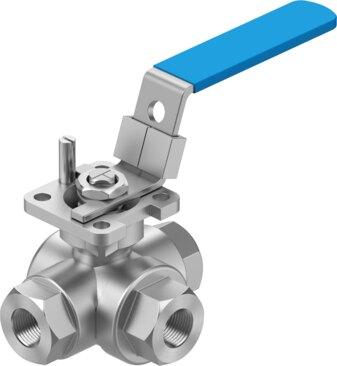

Reference imageConfirm configuration by manufacturer part number.
Festo
8096952
Ball valve VZBE-3/8-T-63-F-3T-F04-M-V15V15
Engineered with a 3-way ball valve and T hole design, this Festo 8096952 mechanical industrial component features a soft sealing principle and 3/8 NPT fitting connection based on ASME B1.20.1 and ISO 5211 norms. It supports in-line installation in any mounting position, handling a nominal width DN of 10, a nominal pressure PN of 63, and a medium temperature range from -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids. The unit includes an F04 flange hole pattern, a 9.6 Nm breakaway torque at nominal pressure, a reversible flow direction, and a 1.4 m³/h flow rate Kv for the T corner. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096952
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096952.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | T hole
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 3/8 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F04
- Inside diameter
- 11 mm
- Nominal width DN
- 10
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 9.6 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv type T corner
- 1.4 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
