Festo
8096955

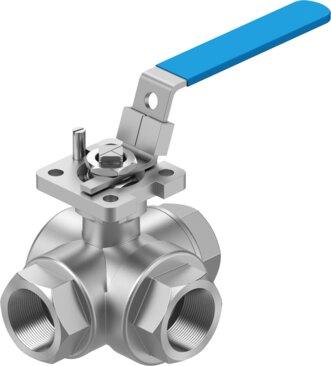

Ball valve VZBE-1-T-63-F-3T-F05-M-V15V15
The Festo 8096955 is a mechanical 3-way ball valve featuring a T hole, a soft sealing principle, and an in-line installation design with a 1 NPT fitting connection. Built on ASME B1.20.1 and ISO 5211 norms with an F05 flange hole pattern, this 3/2 valve functions with a nominal width DN of 25, a 20 mm inside diameter, and a nominal pressure PN of 63. It operates in any mounting position across a medium temperature range of -20 °C to 200 °C, handling vapor, compressed air, inert gas, water, and neutral liquids with a reversible flow direction and a breakaway torque of 25.2 Nm. Submit your exact part number, quantity, and application requirements to receive a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096955
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096955.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | T hole
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F05
- Inside diameter
- 20 mm
- Nominal width DN
- 25
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 25.2 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv type T corner
- 4.6 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
