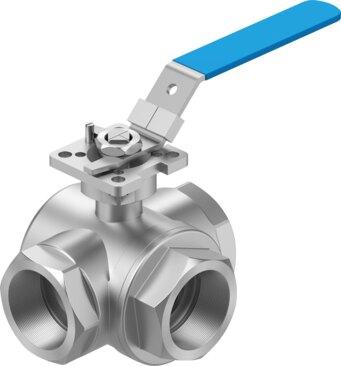

Reference imageConfirm configuration by manufacturer part number.
Festo
8096958
Ball valve VZBE-2-T-63-F-3T-F0507-M-V15V15
The Festo 8096958 is a mechanical 3-way ball valve featuring a T-hole structural design, a soft sealing principle, and a nominal width DN of 50 with a 38.1 mm inside diameter. Built for in-line installation in any mounting position with 2 NPT fitting connections and an F0507 flange hole pattern, this 3/2 valve function component operates at a nominal pressure PN of 63 and a breakaway torque of 85 Nm at nominal pressure differential. It accommodates vapor, compressed air conforming to ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids across a medium temperature range of -20 °C to 200 °C, while incorporating RoHS-compliant materials and VDMA24364 Zone III LABS conformity based on ASME B1.20.1 and ISO 5211 norms. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8096958
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8096958.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | T hole
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 2 NPT
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0507
- Inside diameter
- 38.1 mm
- Nominal width DN
- 50
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 85 Nm
- Based on norm
- ASME B1.20.1 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv type T corner
- 22.5 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8096958. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
