Festo
8097166
Servo motor EMMB-AS-40-01-K-S30SB
The Festo industrial component, part number 8097166, conforms to IEC 60034 standards and features an IM B5, IM V1, and IM V3 motor type with thermal class F according to EN 60034-1. This unit operates within an ambient temperature range of -15 °C to 40 °C, extendable up to 60 °C with a derating of -1.5% per degree Celsius, and supports a maximum installation height of 4000 m with specific derating conditions. It includes IP65 degree of protection for the motor housing without connection technology, digital motor temperature transmission via Nikon A format, and a 20000 h bearing lifetime under nominal conditions. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097166
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097166.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -15 °C...40 °C
- Note on ambient temperature
- Up to 60 °C with derating of -1.5% per degree Celsius
- Max. installation height
- 4000 m
- Information on max. installation height
- with 1,000 m and longer only with derating of -1.0% per 100 m
- Storage temperature
- -20 °C...55 °C
- Relative air humidity
- 0 - 90%
- Conforms to standard
- IEC 60034
- Thermal class according to EN 60034-1
- F
- Max. winding temperature
- 155 °C
- Rating class according to EN 60034-1
- S1
- Temperature monitoring
- Digital motor temperature transmission via Nikon A format
- Motor type as per EN 60034-7
- IM B5 | IM V1 | IM V3
- Mounting position
- Any
- Degree of protection
- IP65
- Note on degree of protection
- IP40 for motor shaft without rotary shaft seal | IP54 for motor shaft with rotary shaft seal | IP65 for motor housing without connection technology
- Concentricity, coaxiality, axial runout according to DIN SPEC 42955
- N
- Balancing quality
- G 2.5
- Bearing lifetime, under nominal conditions
- 20000 h
- Featherkey shaft design
- DIN 6885 | A 3 x 3 x 12

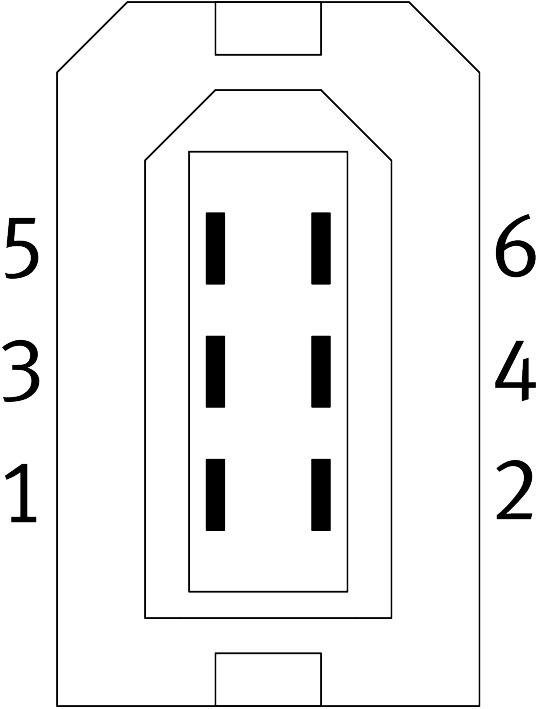

- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- Connection pattern RE
- Electrical connection 1, number of pins/wires
- 6
- Contamination level
- 2
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8097166. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
