8097187

Name: Festo 8097187 Servo motor EMMB-AS-80-07-S30S
Brand: Festo

Servo motor EMMB-AS-80-07-S30S

The Festo 8097187 industrial component conforms to IEC 60034 with a Thermal Class F rating according to EN 60034-1, operating in ambient temperatures from -15 °C to 40 °C and up to 60 °C with a -1.5% per degree Celsius derating. It features an IP65 degree of protection for the motor housing, G 2.5 balancing quality, and digital motor temperature transmission via Nikon A format. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8097187
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8097187.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -15 °C...40 °C
Note on ambient temperature: Up to 60 °C with derating of -1.5% per degree Celsius
Max. installation height: 4000 m
Information on max. installation height: with 1,000 m and longer only with derating of -1.0% per 100 m
Storage temperature: -20 °C...55 °C
Relative air humidity: 0 - 90%
Conforms to standard: IEC 60034
Thermal class according to EN 60034-1: F
Max. winding temperature: 155 °C
Rating class according to EN 60034-1: S1
Temperature monitoring: Digital motor temperature transmission via Nikon A format
Motor type as per EN 60034-7: IM B5 | IM V1 | IM V3
Mounting position: Any
Degree of protection: IP65
Note on degree of protection: IP40 for motor shaft without rotary shaft seal | IP54 for motor shaft with rotary shaft seal | IP65 for motor housing without connection technology
Concentricity, coaxiality, axial runout according to DIN SPEC 42955: N
Balancing quality: G 2.5
Bearing lifetime, under nominal conditions: 20000 h
Electrical connection 1, connection type: Plug
Electrical connection 1, connection technology: Connection pattern RE

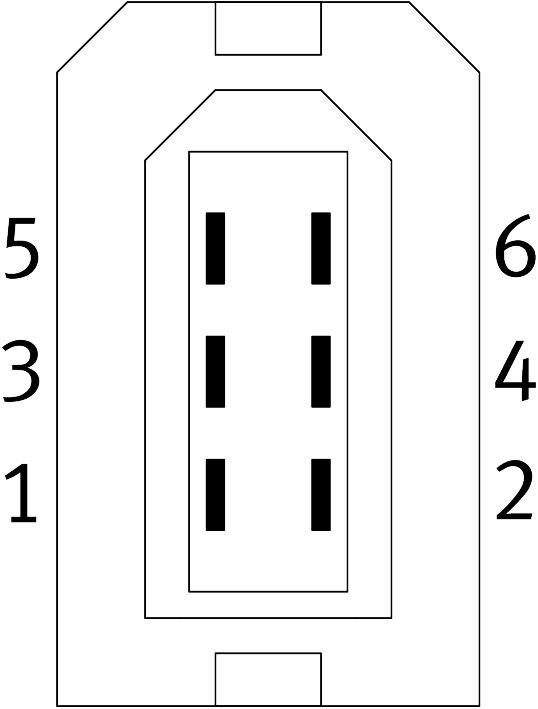

Electrical connection 1, number of pins/wires: 6
Contamination level: 2
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8097187. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
