Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

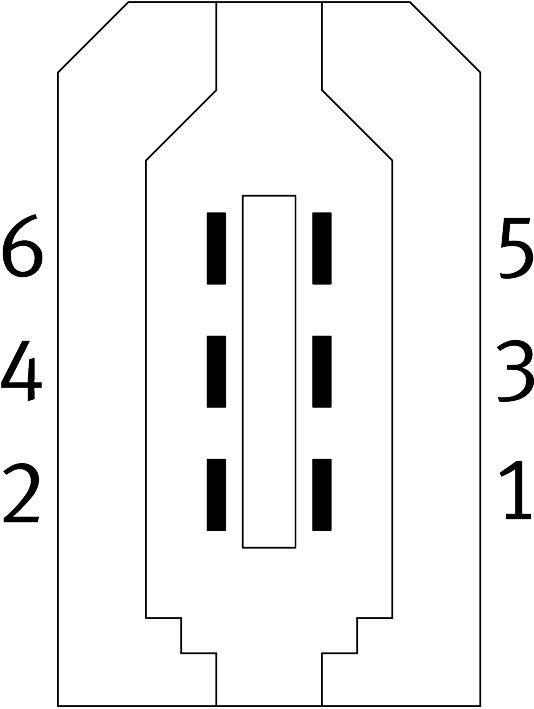

Reference imageConfirm configuration by manufacturer part number.
Festo
8097196
Adapter NEFM-REG6-K-0.5-B-REG6
The Festo 8097196 industrial component features a straight-outlet square socket with 6 pins on the field device side and a straight-outlet square plug with 6 pins on the control side, utilizing connection pattern RE for battery functions. This part operates within a DC and AC voltage range of 0 V to 30 V, supports a current rating of 1.6 A at 40° C, and provides a surge resistance of 2 kV at a product weight of 66 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097196
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097196.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Additional functions
- For battery
- Product weight
- 66 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern RE
- Electrical connection 1, number of pins/wires
- 6
- Electrical connection 1, occupied pins/wires
- 6
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Connection pattern RE
- Electrical connection 2, number of pins/wires
- 6
- Electrical connection 2, occupied pins/wires
- 6
- DC operating voltage range
- 0 V...30 V
- Operating voltage range AC
- 0 V...30 V
- Current rating at 40° C
- 1.6 A
- Surge resistance
- 2 kV
- Shield
- Yes
- Cable length
- 0.5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 68 mm
- Cable diameter
- 7.3 mm
- Cable design
- 3 x (2 x 0.2 mm²)
- Nominal conductor cross section
- 0.2 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8097196. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
