Festo
8097197
Adapter NEFM-REG6-K-0.5-R3G8
The Festo part number 8097197 is a 56 g industrial component featuring a straight square socket on the field device side with 6 pins and wires using connection pattern RE, paired with a straight square RJ45 plug on the control side featuring 8 pins and 6 occupied wires. Operating across a DC and AC voltage range of 0 V to 30 V, this shielded assembly supports a current rating of 1.6 A at 40° C and a surge resistance of 2 kV. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097197
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097197.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product weight
- 56 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight

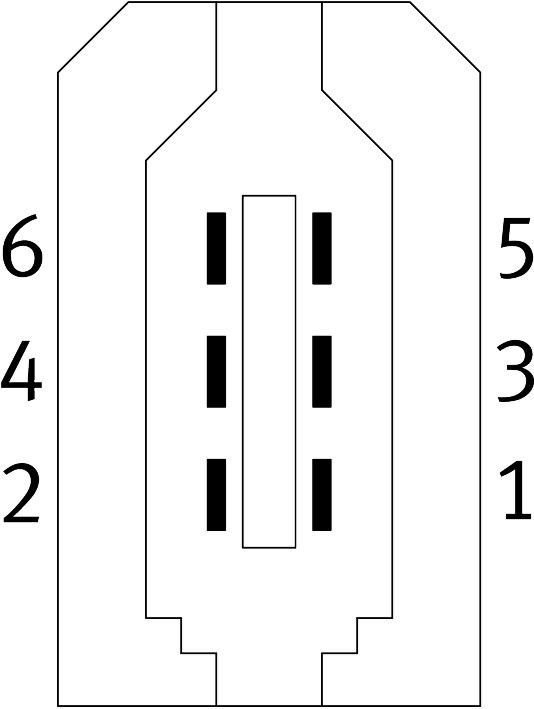

- Electrical connection 1, connection technology
- Connection pattern RE
- Electrical connection 1, number of pins/wires
- 6
- Electrical connection 1, occupied pins/wires
- 6
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 6
- DC operating voltage range
- 0 V...30 V
- Operating voltage range AC
- 0 V...30 V
- Current rating at 40° C
- 1.6 A
- Surge resistance
- 2 kV
- Shield
- Yes
- Cable length
- 0.5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 68 mm
- Cable diameter
- 6.8 mm
- Cable design
- 4 x (2 x 0.081 mm²) + 1 x (2 x 0.205 mm²)
- Nominal conductor cross section
- 0.081 mm² | 0.205 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8097197. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
