Festo
8097202
Encoder cable NEBM-REG6-E-25-Q14N-REG6
This Festo industrial component, part number 8097202, features a 25-meter cable with straight square sockets on the field device side and straight square plugs on the control side, utilizing connection pattern RE with all 6 pins occupied and no label holder. The unit supports an operating voltage range of 0 V to 30 V AC or DC, a current rating of 1.6 A at 40° C, and a surge resistance of 2 kV. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097202
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097202.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight

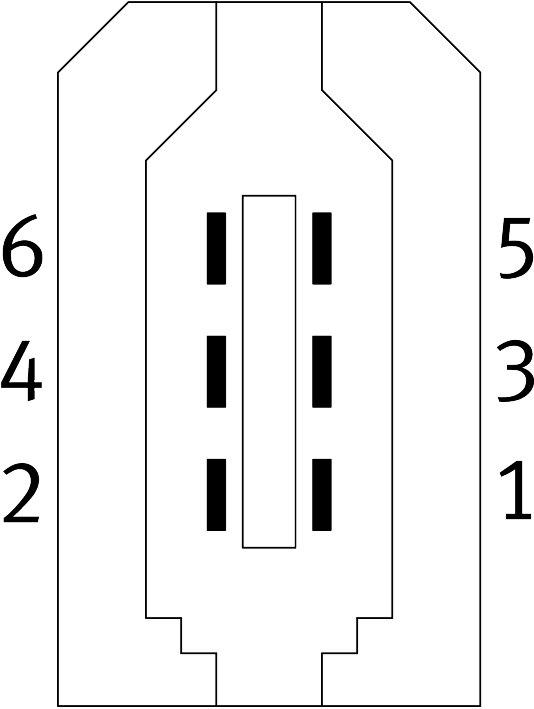

- Electrical connection 1, connection technology
- Connection pattern RE
- Electrical connection 1, number of pins/wires
- 6
- Electrical connection 1, occupied pins/wires
- 6
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Connection pattern RE
- Electrical connection 2, number of pins/wires
- 6
- Electrical connection 2, occupied pins/wires
- 6
- DC operating voltage range
- 0 V...30 V
- Operating voltage range AC
- 0 V...30 V
- Current rating at 40° C
- 1.6 A
- Surge resistance
- 2 kV
- Cable length
- 25 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 55 mm
- Bending radius, exible cable installation
- 55 mm
- Cable diameter
- 7.4 mm
- Cable design
- 2 x 0.51 mm² + 4 x 0.205 mm²
- Nominal conductor cross section
- 0.205 mm² | 0.51 mm²
