Festo
8097204

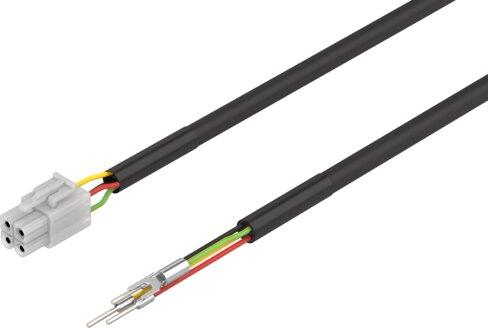

Motor cable NEBM-H6G4-E-20-Q13N-LE4
The Festo 8097204 industrial component is a 20-meter connector cable featuring a straight, square 4-pin socket on the field device side with connection diagram H6 coded for motors, and an open-end 4-pin connection on the control side. This cable operates within a 0 V to 300 V range for both AC and DC, supports a current rating of 9.5 A at 40° C, and provides a surge resistance of 2 kV without a label holder. Built with characteristics suitable for energy chains, the wiring includes all 4 occupied pins on both ends while connector cable test conditions remain available on request. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097204
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097204.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection diagram H6, coded for motor
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...300 V
- Operating voltage range AC
- 0 V...300 V
- Current rating at 40° C
- 9.5 A
- Surge resistance
- 2 kV
- Cable length
- 20 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 55 mm
- Bending radius, exible cable installation
- 55 mm
- Cable diameter
- 7.3 mm
- Cable design
- 4 x 0.79 mm²
- Nominal conductor cross section
- 0.79 mm² | AWG18
- Wire ends
- Wire ferrule
- Degree of protection
- IP20
- Note on degree of protection
- In mounted state
- Ambient temperature
- -25 °C...90 °C
- Ambient temperature with exible cable installation
- -25 °C...90 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8097204. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
