Festo
8097205

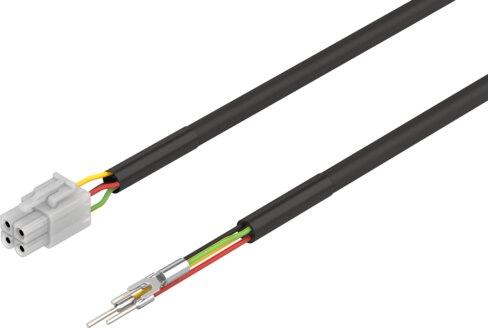

Motor cable NEBM-H6G4-E-25-Q13N-LE4
The Festo part number 8097205 is an industrial component featuring a 25-meter cable with an energy-chain-suitable characteristic and an absence of a label holder. Electrical connection 1 on the field device side utilizes a straight, 4-pin, 4-wire square socket featuring connection technology H6 coded for motors, while electrical connection 2 on the control side consists of an open end with 4 pins and 4 occupied wires. This assembly supports a DC and AC operating voltage range of 0 V to 300 V, a current rating of 9.5 A at 40° C, and a surge resistance of 2 kV, with connector cable test conditions available upon request. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097205
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097205.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection diagram H6, coded for motor
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...300 V
- Operating voltage range AC
- 0 V...300 V
- Current rating at 40° C
- 9.5 A
- Surge resistance
- 2 kV
- Cable length
- 25 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 55 mm
- Bending radius, exible cable installation
- 55 mm
- Cable diameter
- 7.3 mm
- Cable design
- 4 x 0.79 mm²
- Nominal conductor cross section
- 0.79 mm² | AWG18
- Wire ends
- Wire ferrule
- Degree of protection
- IP20
- Note on degree of protection
- In mounted state
- Ambient temperature
- -25 °C...90 °C
- Ambient temperature with exible cable installation
- -25 °C...90 °C
