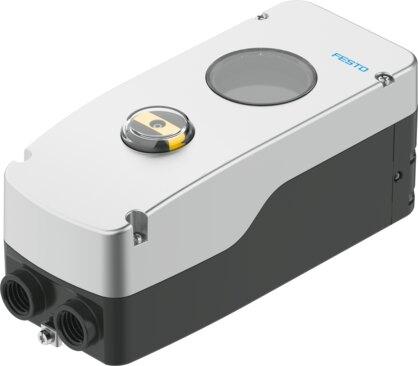

Reference imageConfirm configuration by manufacturer part number.
Festo
8097412
Positioner CMSH-S-VDE1-S-A-AL-G14-C1M20-HA
The Festo 8097412 is a digital, electropneumatic positioner featuring a single-acting mode of operation, an integrated safety switch, and pneumatic output 2 exhausted. It offers a 0 degree to 115 degree sensing range via a linear potentiometer, an LCD display rotatable 90 degrees via software, and setting options accessible through the display and keys. Operating within a pressure range of 1.4 bar to 8 bar with an air performance of 380 l/min at delta p equals 6 bar, this component utilizes a G1/4 pneumatic connection and includes a 4–20 mA analog input signal range with HART. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097412
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097412.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- digital, electropneumatic positioner
- Mode of operation
- Single-acting
- Design features
- Safety switch, pneumatic output 2 exhausted
- Mounting position
- Any
- Type of mounting
- With accessories | As per VDI/VDE 3845
- Measuring principle of linear potentiometer
- Potentiometer
- Sensing range
- 0 deg...115 deg
- Display
- LCD display, via software 90° rotatable
- Setting options
- Via display and keys
- Cycle time
- 20 ms
- Nominal altitude of use above sea level
- <= 2000 m NHN
- Overvoltage category
- II
- Operating pressure
- 0.14 MPa...0.8 MPa | 1.4 bar...8 bar | 20.3 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible | Maximum particle size 40 µm
- Air performance at Δp = 6 bar
- 380 l/min
- Pneumatic connection
- G1/4
- Reverse polarity protection
- Yes
- Connection resistance
- 3 kOhm...80 kOhm
- Analog inputs, signal range
- 4–20 mA with HART
- Analog inputs, input impedance
- 480 ohm at 20 mA
- Analog inputs, overload protection
- <65 mA
- Analog inputs, galvanic isolation
- Yes
- Input characteristics
- 1x to IEC 61131-2, type 3
- Digital inputs, reverse polarity protection
- Yes
- Digital inputs, electrical isolation
- Yes
- Digital inputs, overload protection
- 33 V
- Electrical connection 1, function
- Analog input | Digital input
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8097412. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
