8097423

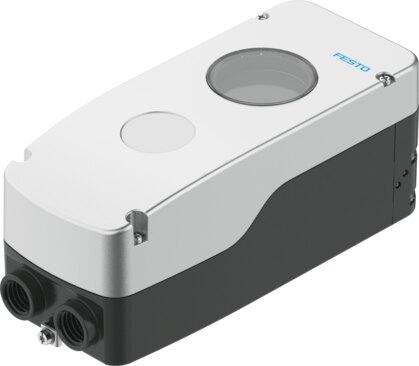

Name: Festo 8097423 Positioner CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA
Brand: Festo

Positioner CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA

The Festo 8097423 is a digital, electropneumatic double-acting positioner featuring an external linear potentiometer measuring principle, an LCD display rotatable by 90 degrees via software, and setting options via display and keys. Operating within a pressure range of 0.14 MPa to 0.8 MPa (1.4 bar to 8 bar) utilizing compressed air as per ISO 8573-1:2010 [7:4:4], this component provides an air performance of 270 l/min at Δp = 6 bar through a G1/4 pneumatic connection. It includes analog inputs with a 4–20 mA HART signal range, reverse polarity protection, a safety switch with pneumatic output 2 exhausted and safety switch 4 pressurized, and mounts in any position using accessories or as per VDI/VDE 3845. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8097423
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8097423.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: digital, electropneumatic positioner
Mode of operation: Double-acting
Design features: Safety switch, pneumatic output 2 exhausted | Safety switch 4 pressurized
Mounting position: Any
Type of mounting: With accessories | As per VDI/VDE 3845
Measuring principle of linear potentiometer: External
Display: LCD display, via software 90° rotatable
Setting options: Via display and keys
Cycle time: 20 ms
Nominal altitude of use above sea level: <= 2000 m NHN
Overvoltage category: II
Operating pressure: 0.14 MPa...0.8 MPa | 1.4 bar...8 bar | 20.3 psi...116 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible | Maximum particle size 40 µm
Air performance at Δp = 6 bar: 270 l/min
Pneumatic connection: G1/4
Reverse polarity protection: Yes
Connection resistance: 3 kOhm...80 kOhm
Analog inputs, signal range: 4–20 mA with HART
Analog inputs, input impedance: 480 ohm at 20 mA
Analog inputs, overload protection: <65 mA
Analog inputs, galvanic isolation: Yes
Input characteristics: 1x to IEC 61131-2, type 3
Digital inputs, reverse polarity protection: Yes
Digital inputs, electrical isolation: Yes
Digital inputs, overload protection: 33 V
Electrical connection 1, function: Analog input | Digital input

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8097423. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
