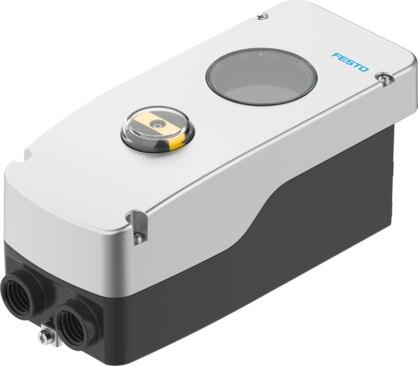

Reference imageConfirm configuration by manufacturer part number.
Festo
8097425
Positioner CMSH-S-V-SD-AL-C1M20-HA
The Festo 8097425 is a digital electropneumatic positioner featuring a linear potentiometer measuring principle with a 0 deg to 115 deg sensing range and a 20 ms cycle time. Designed for both single-acting and double-acting modes of operation in any mounting position, it includes an LCD display rotatable by 90 degrees via software, onboard setting options via display and keys, and 4–20 mA analog inputs with HART support. Operating within a pressure range of 1.4 bar to 8 bar (20.3 psi to 116 psi) using ISO 8573-1:2010 [7:4:4] compressed air, this component delivers an air performance of 270 l/min to 380 l/min at Δp = 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097425
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097425.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- digital, electropneumatic positioner
- Mode of operation
- Double-acting | Single-acting
- Mounting position
- Any
- Measuring principle of linear potentiometer
- Potentiometer
- Sensing range
- 0 deg...115 deg
- Display
- LCD display, via software 90° rotatable
- Setting options
- Via display and keys
- Cycle time
- 20 ms
- Nominal altitude of use above sea level
- <= 2000 m NHN
- Overvoltage category
- II
- Operating pressure
- 0.14 MPa...0.8 MPa | 1.4 bar...8 bar | 20.3 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible | Maximum particle size 40 µm
- Air performance at Δp = 6 bar
- 270 l/min...380 l/min
- Note on air performance
- Depending on additional specic accessories
- Pneumatic connection
- With specic accessories
- Reverse polarity protection
- Yes
- Connection resistance
- 3 kOhm...80 kOhm
- Analog inputs, signal range
- 4–20 mA with HART
- Analog inputs, input impedance
- 480 ohm at 20 mA
- Analog inputs, overload protection
- <65 mA
- Analog inputs, galvanic isolation
- Yes
- Input characteristics
- 1x to IEC 61131-2, type 3
- Digital inputs, reverse polarity protection
- Yes
- Digital inputs, electrical isolation
- Yes
- Digital inputs, overload protection
- 33 V
- Electrical connection 1, function
- Analog input | Digital input | External path/angle sensor
