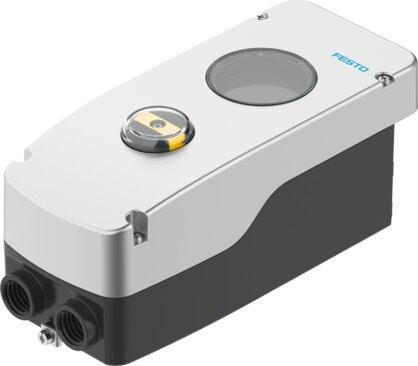

Name: Festo 8097426 Positioner CMSH-S-V-SD-AL-C1N12-HA
Brand: Festo

Positioner CMSH-S-V-SD-AL-C1N12-HA

The Festo 8097426 is a digital, electropneumatic positioner featuring a linear potentiometer sensing range of 0 degrees to 115 degrees and a fast 20 ms cycle time for both single-acting and double-acting modes. It operates within a pressure range of 0.14 MPa to 0.8 MPa (1.4 bar to 8 bar / 20.3 psi to 116 psi) utilizing compressed air meeting ISO 8573-1:2010 [7:4:4] standards, alongside a 4–20 mA analog input with HART communication and a 480 ohm input impedance at 20 mA. Configuration is managed through an LCD display and onboard keys, supported by reverse polarity protection and an air performance capacity ranging from 270 l/min to 380 l/min at Δp = 6 bar. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8097426
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8097426.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: digital, electropneumatic positioner
Mode of operation: Double-acting | Single-acting
Mounting position: Any
Measuring principle of linear potentiometer: Potentiometer
Sensing range: 0 deg...115 deg
Display: LCD display, via software 90° rotatable
Setting options: Via display and keys
Cycle time: 20 ms
Nominal altitude of use above sea level: <= 2000 m NHN
Overvoltage category: II
Operating pressure: 0.14 MPa...0.8 MPa | 1.4 bar...8 bar | 20.3 psi...116 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible | Maximum particle size 40 µm
Air performance at Δp = 6 bar: 270 l/min...380 l/min
Note on air performance: Depending on additional specic accessories
Pneumatic connection: With specic accessories
Reverse polarity protection: Yes
Connection resistance: 3 kOhm...80 kOhm
Analog inputs, signal range: 4–20 mA with HART
Analog inputs, input impedance: 480 ohm at 20 mA
Analog inputs, overload protection: <65 mA
Analog inputs, galvanic isolation: Yes
Input characteristics: 1x to IEC 61131-2, type 3
Digital inputs, reverse polarity protection: Yes
Digital inputs, electrical isolation: Yes
Digital inputs, overload protection: 33 V
Electrical connection 1, function: Analog input | Digital input | External path/angle sensor
