Festo
8097469

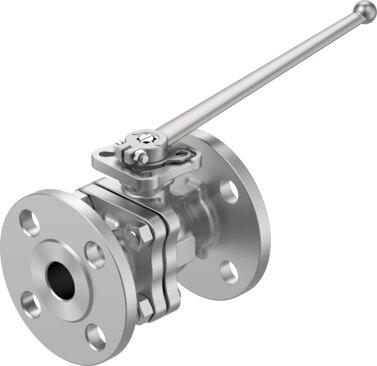

Ball valve VZBF-1-P1-20-D-2-F0405-M-V15V15
The Festo 8097469 is a mechanical 2-way ball valve featuring a soft sealing principle, a nominal width DN of 25, and a 24 mm inside diameter. Constructed for in-line installation with any mounting position, it utilizes an ANSI B16.5 class 150 flange connection, an ISO 5211 compliant F0405 flange hole pattern, and a reversible 2/2 valve function handling media temperatures from -20 °C to 200 °C. The unit achieves a nominal pressure rating of PN 20, a flow rate Kv of 87 m³/h, and a breakaway torque of 12 Nm at nominal differential pressure while supporting compressed air, inert gas, vapor, water, and neutral liquids. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097469
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097469.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Flange as per ANSI B16.5 class 150
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0405
- Inside diameter
- 24 mm
- Nominal width DN
- 25
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 20
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 12 Nm
- Based on norm
- ANSI B16.5 class150 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 87 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8097469. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
