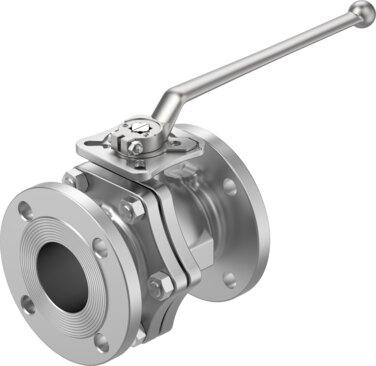

Reference imageConfirm configuration by manufacturer part number.
Festo
8097474
Ball valve VZBF-3-P1-20-D-2-F0710-M-V15V15
The Festo 8097474 is a 2-way mechanical soft-sealed ball valve featuring an in-line installation design, a nominal width DN of 80, and a 76 mm inside diameter configured with an ANSI B16.5 class 150 flange connection and an F0710 flange hole pattern. Built on ANSI B16.5 class 150 and ISO 5211 norms, this 2/2 valve operates with a reversible flow direction, a nominal pressure PN of 20, a Kv flow rate of 995 m³/h, and a breakaway torque of 90 Nm at differential and nominal pressure. It accommodates a medium temperature range from -20 °C to 200 °C across vapor, compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids, while incorporating RoHS-compliant materials with VDMA24364 Zone III LABS conformity and slot direction flow indication for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8097474
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8097474.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Flange as per ANSI B16.5 class 150
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0710
- Inside diameter
- 76 mm
- Nominal width DN
- 80
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 20
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 90 Nm
- Based on norm
- ANSI B16.5 class150 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 995 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8097474. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
