8097576

Name: Festo 8097576 Connecting cable NEBS-M12G5-ES-15-LE5
Brand: Festo

Connecting cable NEBS-M12G5-ES-15-LE5

This Festo industrial component, part number 8097576, features an M12x1 A-coded 5-pin socket with a straight cable outlet on the field device side and an open-end 5-wire cable on the control side, operating within a 0 V to 60 V DC range. Built on the EN 61076-2-101 norm with a product weight of 828 g, the unit includes two label holders, a knurled nut for mounting, and a rotatable screw-type lock with terminal allocation for pins 1 through 5 designated as BN, WH, BU, BK, and GY respectively. Contact durability is rated for 100 mating cycles. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8097576
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8097576.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101
Cable designation: With 2x label holder
Contact durability: 100
Type of mounting: With knurled nut
Product weight: 828 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 5
Electrical connection 1, type of mounting: Screw-type lock | Rotatable | Compatible with rotatable/non-rotatable screw-type lock

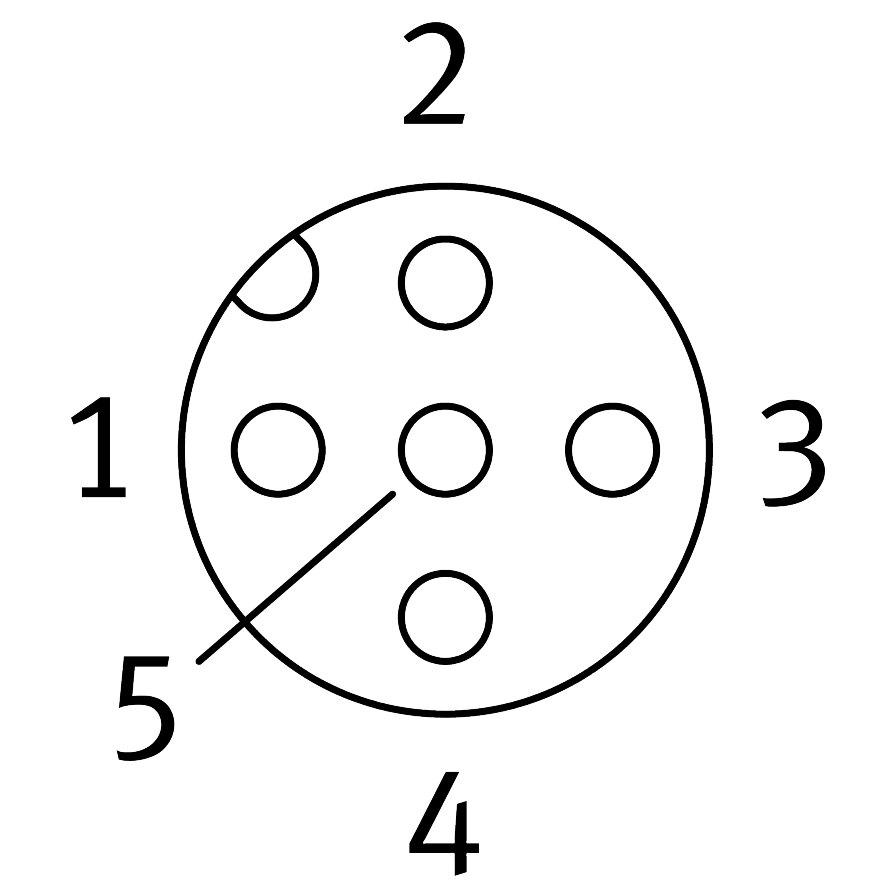

Electrical connection 1, terminal allocation: Pin 1 = BN | Pin 2 = WH | Pin 3 = BU | Pin 4 = BK | Pin 5 = GY
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 5
Electrical connection 2, occupied pins/wires: 5
DC operating voltage range: 0 V...60 V
Operating voltage range AC: 0 V...48 V
Current rating at 40° C: 4 A
Surge resistance: 1.5 kV
Protective earth connection: Not available
Shield: Yes
