Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8098392

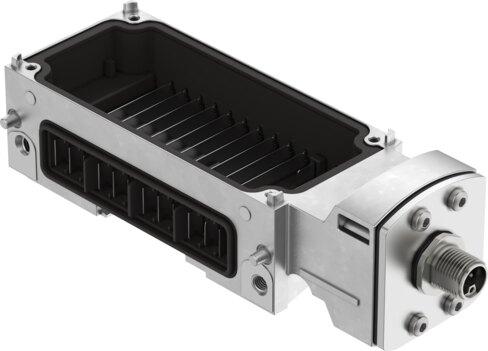

Interlinking block CPX-M-GE-EV-S-M12-5POL
The Festo 8098392 is an industrial component featuring an angled fitting mounting type and a die-cast aluminum housing with a product weight of 266 g. It provides a system power supply with a maximum power supply capacity of 16 A, utilizing a 5-pin, L-coded, M12x1 plug electrical connection. This RoHS compliant part adheres to VDMA24364-B2-L LABS conformity, carries a 0 corrosion resistance class for no corrosion stress, and holds c UL - Recognized (OL) certification. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8098392
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8098392.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- Angled tting
- Product weight
- 266 g
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Certication
- c UL - Recognized (OL)
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
- Electrical connection
- 5-pin | L-coded | M12x1 | Plug
- Max. power supply
- 16 A
- Power supply
- System supply
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8098392. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
