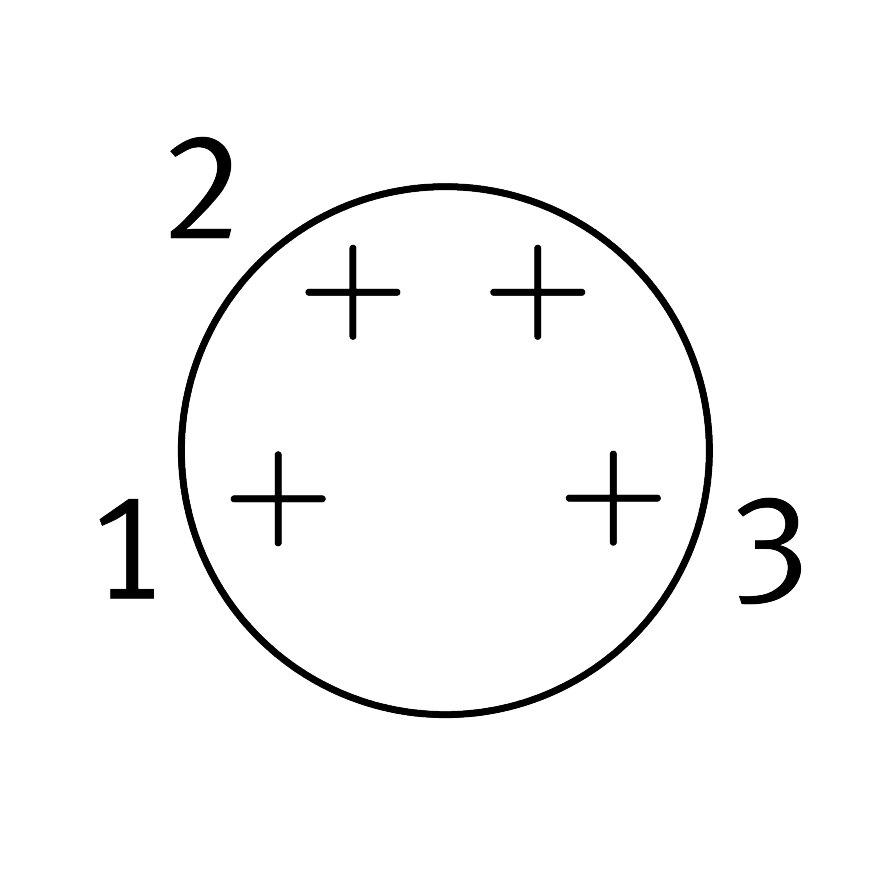

Reference imageConfirm configuration by manufacturer part number.
Festo
8099218
Connecting cable NEBC-M8G4-ES-1.5-N-SB-S1G9-RS2-S7
The Festo 8099218 is an industrial component supporting RS232 protocol with a DC operating voltage range of 0 V to 24 V and any mounting position. It features a field device side connection utilizing an M8x1 A-coded 4-pin round straight plug with 3 occupied pins, a screw-type lock, and included cable accessories. The control side connection consists of a Sub-D 9-pin square straight socket with 8 occupied pins and a 2x 4-40 UNC screw mounting type. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8099218
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8099218.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- RS232
- Cable designation
- With accessories
- Mounting position
- Any
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Sub-D
- Electrical connection 2, number of pins/wires
- 9
- Electrical connection 2, occupied pins/wires
- 8
- Electrical connection 2, type of mounting
- 2x 4-40 UNC screw
- DC operating voltage range
- 0 V...24 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Cable length
- 1.5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 24 mm
- Bending radius, exible cable installation
- 47 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8099218. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
