Festo
8099432

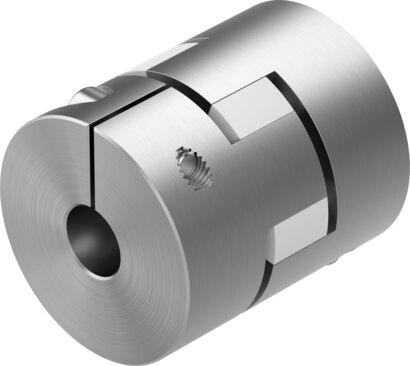

Coupling EAMC-42-50-12-14-U
Engineered by Festo, part number 8099432 is an industrial component featuring a size 42 construction with a nominal length of 50 mm, a 12 mm diameter for holder 1, and a 14 mm diameter for holder 2. This RoHS-compliant unit weighs 143 g, supports any mounting position, and delivers a transferable torque of 21 Nm with a maximum rotational speed of 6000 rpm and a mass moment of inertia of 34.8 kgmm². It operates and is stored within a temperature range of -25 °C to 60 °C, accommodates 0 to 95% relative air humidity, and conforms to VDMA24364-B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8099432
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8099432.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 12 mm
- Diameter of holder 2
- 14 mm
- Size
- 42
- Nominal length
- 50 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 143 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8099432. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
