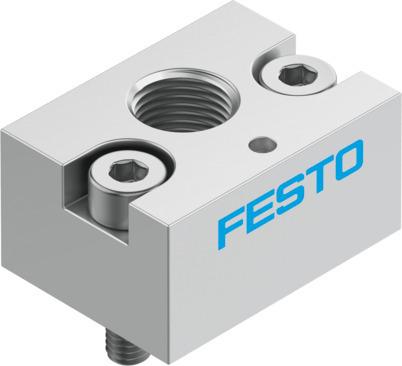

Reference imageConfirm configuration by manufacturer part number.
Festo
8099850
Connector VABD-B14-P1-G18
The Festo 8099850 is an industrial component featuring a wrought aluminum alloy sub-base and a G1/8 pneumatic connection 1. Weighing 26 g and offering RoHS compliance, this unit operates with compressed air as per ISO 8573-1:2010 [7:-:-] within a pressure range of 1.5 bar to 10 bar. It supports any mounting position via through-hole installation and provides a corrosion resistance class (CRC) of 2 with VDMA24364 Zone III LABS conformity across an ambient, medium, and storage temperature range of -20 °C to 60 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8099850
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8099850.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 1.5 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 26 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8099850. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
