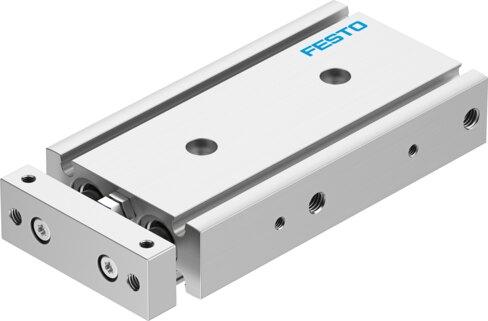

Reference imageConfirm configuration by manufacturer part number.
Festo
8100557
Twin cylinder DGTZ-GF-10-40-P-A
The Festo 8100557 is a double-acting industrial guide drive unit featuring a 10 mm piston diameter, a 40 mm stroke, and a yoke operating mode with a plain-bearing guide. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.15 MPa to 0.8 MPa pressure range and features elastic cushioning rings at both ends with an impact energy rating of 0.08 Nm. Designed with an adjustable end position range of 10 mm, an ambient temperature range of -10 °C to 80 °C, and ISO 14644-1 Class 5 cleanroom suitability, it delivers a theoretical retracting force of 60 N at 6 bar and a maximum payload of 3.6 N. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8100557
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8100557.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 40 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 10 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.08 Nm
- Max. payload as a function of the stroke at dened distance xs
- 3.6 N
- Theoretical force at 6 bar, retracting
- 60 N
- Theoretical force at 6 bar, advancing
- 94 N
- Moving mass
- 195 g
- Product weight
- 195 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- HNBR
- Housing material
- Wrought aluminum alloy, anodized
- Piston rod material
- high-alloy stainless steel
