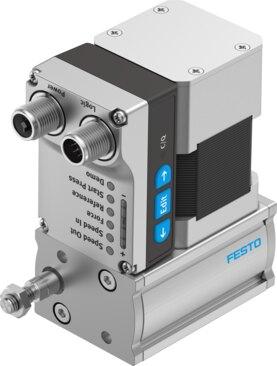

Reference imageConfirm configuration by manufacturer part number.
Festo
8101539
Electric cylinder unit EPCE-TB-45-10-FL-ST-M-H1-PLK-AA
The Festo part number 8101539 is an electric cylinder with a toothed belt, integrated actuator, and a plain bearing-guide providing torsion protection for a size 45 unit with a 10 mm stroke and 0 mm stroke reserve. This component features an effective drive pinion diameter of 10.18 mm, a 2 mm toothed belt pitch, a 0.31 % toothed belt elongation, an M6 piston rod thread, and can be mounted in any position. Operational performance includes a maximum speed of 0.44 m/s, a maximum acceleration of 9 m/s², a repetition accuracy of ±0.05 mm, position sensing via motor encoder, and an absolute single-turn magnetic rotor position sensor. Integrated functions comprise a user interface, LED display, integrated end-position sensing, and temperature monitoring with an integrated precise CMOS temperature sensor with analog output that initiates a shutdown in the event of overtemperature, alongside configurable, non-galvanically isolated digital logic outputs. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8101539
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8101539.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 10.18 mm
- Size
- 45
- Stroke
- 10 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M6
- Toothed belt elongation
- 0.31 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Position sensing
- Motor encoder
- Structural design
- Electric cylinder | With toothed belt | With integrated actuator
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 9 m/s²
- Max. speed
- 0.44 m/s
- Repetition accuracy
- ±0.05 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 3 A
- Parameterization interface
- IO-Link®
