8101541

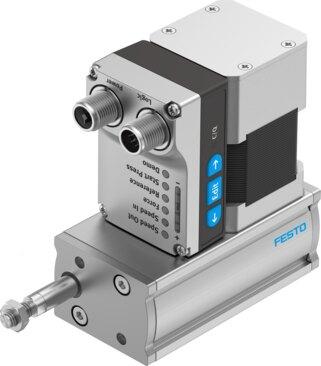

Name: Festo 8101541 Electric cylinder unit EPCE-TB-45-30-FL-ST-M-H1-PLK-AA
Brand: Festo

Electric cylinder unit EPCE-TB-45-30-FL-ST-M-H1-PLK-AA

The Festo 8101541 is an electric cylinder featuring an integrated actuator, toothed belt drive with a 2 mm pitch, and a plain bearing-guide for torsion protection. This size 45 component delivers a 30 mm stroke with 0 mm stroke reserve, a 10.18 mm drive pinion effective diameter, an M6 piston rod thread, a maximum speed of 0.44 m/s, and a maximum acceleration of 9 m/s². Operational feedback and control are supported by an absolute single-turn magnetic rotor position sensor, motor encoder position sensing, an LED display user interface, integrated end-position sensing, and configurable, non-galvanically isolated digital logic outputs. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8101541
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8101541.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 10.18 mm
Size: 45
Stroke: 30 mm
Stroke reserve: 0 mm
Piston rod thread: M6
Toothed belt elongation: 0.31 %
Toothed belt pitch: 2 mm
Mounting position: Any
Position sensing: Motor encoder
Structural design: Electric cylinder | With toothed belt | With integrated actuator
Protection against torsion/guide: With plain bearing-guide
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Temperature monitoring: Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 9 m/s²
Max. speed: 0.44 m/s
Repetition accuracy: ±0.05 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 3 A
Logic max. current consumption: 300 mA
DC nominal voltage: 24 V
Nominal current: 3 A
Parameterization interface: IO-Link®

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8101541. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
