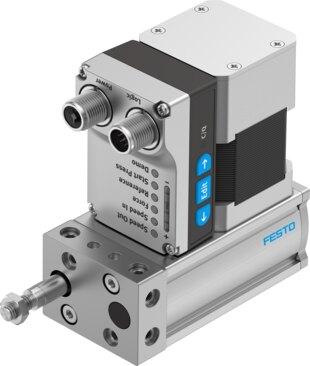

Name: Festo 8101544 Electric cylinder unit EPCE-TB-45-20-FL-MF-ST-M-H1-PLK-AA
Brand: Festo

Electric cylinder unit EPCE-TB-45-20-FL-MF-ST-M-H1-PLK-AA

The Festo size 45 electric cylinder, part number 8101544, features an integrated actuator with a toothed belt offering a 2 mm pitch, 0.31 % belt elongation, and a 10.18 mm drive pinion effective diameter. This component provides a 20 mm stroke, M6 piston rod thread, plain bearing-guide torsion protection, and any mounting position capability with a maximum speed of 0.44 m/s, maximum acceleration of 9 m/s², and a repetition accuracy of ±0.05 mm. System feedback and monitoring include a motor encoder, absolute single-turn magnetic rotor position sensor, LED display, user interface, integrated end-position sensing, and an integrated precise CMOS temperature sensor with analog output for overtemperature shutdown. Please submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8101544
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8101544.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 10.18 mm
Size: 45
Stroke: 20 mm
Stroke reserve: 0 mm
Piston rod thread: M6
Toothed belt elongation: 0.31 %
Toothed belt pitch: 2 mm
Mounting position: Any
Position sensing: Motor encoder
Structural design: Electric cylinder | With toothed belt | With integrated actuator
Protection against torsion/guide: With plain bearing-guide
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Temperature monitoring: Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 9 m/s²
Max. speed: 0.44 m/s
Repetition accuracy: ±0.05 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 3 A
Logic max. current consumption: 300 mA
DC nominal voltage: 24 V
Nominal current: 3 A
Parameterization interface: IO-Link®
