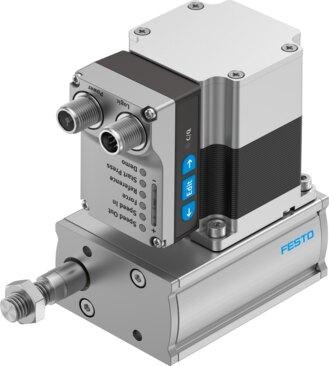

Reference imageConfirm configuration by manufacturer part number.
Festo
8102162
Electric cylinder unit EPCE-TB-60-20-FL-ST-M-H1-PLK-AA
The Festo size 60 electric cylinder (Part Number: 8102162) features an integrated actuator with a toothed belt, a plain bearing-guide for torsion protection, and a 20 mm stroke with a 0 mm stroke reserve. This component operates with a 10.18 mm drive pinion effective diameter, a 2 mm toothed belt pitch, a 0.375% toothed belt elongation, an M10x1.25 piston rod thread, and can be installed in any mounting position. Control and monitoring functions include an absolute single-turn magnetic rotor position encoder, a motor encoder for position sensing, an integrated precise CMOS temperature sensor with analog output for overtemperature shutdown, an LED display, a configurable user interface, integrated end-position sensing, and configurable non-galvanically isolated digital logic outputs. Operating parameters consist of a max speed of 0.6 m/s, a max acceleration of 9 m/s², and a repetition accuracy of ±0.05 mm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8102162
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8102162.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 10.18 mm
- Size
- 60
- Stroke
- 20 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Toothed belt elongation
- 0.375 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Position sensing
- Motor encoder
- Structural design
- Electric cylinder | With toothed belt | With integrated actuator
- Protection against torsion/guide
- With plain bearing-guide
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 9 m/s²
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.05 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link®
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8102162. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
